The electronic architecture of older Ford vehicles, particularly the Focus 1.6 TDCi era, presents a distinct challenge for automotive locksmiths and ECU technicians. The Passive Anti-Theft System (PATS) operating on the CAN1 bus is not merely a static check; it is a dynamic communication loop involving the Key, the Instrument Cluster (IPC), and the Engine Control Unit (ECU).
When dealing with the ubiquitous Bosch EDC16C34, a failure in any part of this “trust triangle” renders the vehicle immobile. While many technicians resort to invasive “Immo OFF” file patches that modify the ECU’s internal flash memory, there is a cleaner, more professional alternative.
The Problem: It’s Systemic, Not Local
Unlike simpler systems where the immobilizer data sits solely in a separate box, the Ford CAN1 implementation relies heavily on the Instrument Cluster acting as a gateway.
Common failure points include:
- Instrument Cluster Malfunction: Ford clusters are notorious for soldering defects. If the cluster cannot authenticate the key, it will not send the authorization signal to the ECU.
- ECU Damage: Water ingress or electrical spikes often destroy the original ECU. Installing a donor unit (used ECU) usually requires complex online programming to match the car.
- Lost Keys: A situation that typically requires expensive diagnostic tools to adapt new transponders.
The UNICAN 2 Approach: Emulation via Synchronization Bytes
We have developed a unique solution implemented in the Universal Immo Emulator UNICAN 2, in collaboration with the developers from Ecuserwis. Unlike generic solutions that try to bypass the system by deleting code in the ECU, our approach replicates the correct authorization signal.
This is not a “Plug & Play” magic box—it is a professional tool.
To ensure the ECU accepts the emulator as a legitimate component, the emulator must “speak” the car’s specific language. The workflow respects the integrity of the engine controller:
- Read the ECU: You do not need to modify the ECU data. You simply read the EEPROM content from the EDC16C34.
- Extract Synchro Bytes: The magic lies in the synchronization bytes stored within the ECU. These specific hex values act as the “password” for the immobilizer handshake.
- Configure the Emulator: Using the UNICAN 2 software, you write these specific bytes into the emulator’s memory.

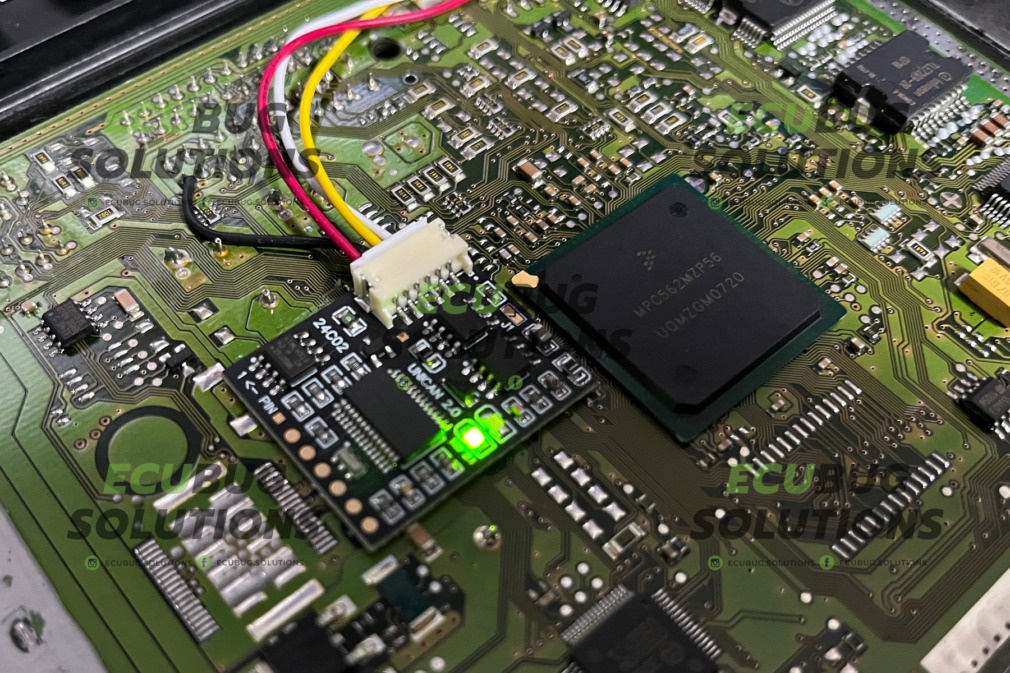

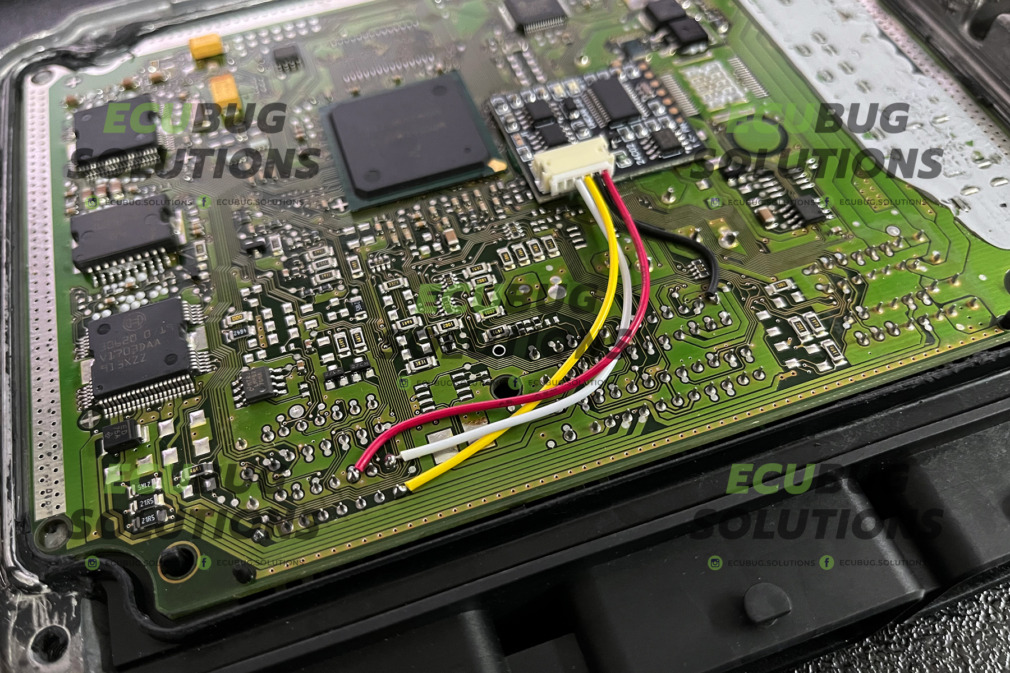

- Install: Once connected to the CAN bus, the emulator generates the exact authorized response the ECU is waiting for.
Why This Algorithm is Superior to Standard “Immo OFF”
Through in-house development, we have refined the communication algorithm to be the only fully functional solution on the market for these specific Ford scenarios.
- Zero CAN Bus Conflicts: Many inferior emulators flood the CAN bus with data, causing “traffic jams” that result in warning lights on the dashboard or diagnostic communication errors. Our algorithm is precise—it only transmits the authorization frame when the ECU requests it.
- ECU Remains Original: Since you are not patching the flash memory of the ECU to disable the immobilizer function, you avoid checksum errors and issues with diagnostic tools in the future. The ECU believes it is communicating with a valid original system.
- Versatility: This single method covers all failure scenarios.
Proven in Real-World Scenarios
We have rigorously tested this algorithm in situations where other methods failed:
- Donor ECU Swaps: If you install a used EDC16C34 from a junkyard, you don’t need to match it to the dashboard. Simply read the sync bytes from the donor ECU, write them to the UNICAN 2, and the engine will start immediately.
- Dead Instrument Cluster: Even if the dashboard is completely disconnected or destroyed, the emulator takes over the role of the immobilizer gateway, allowing the car to start and drive.
- Lost Keys: The emulator bypasses the need for a physical transponder check, solving “all keys lost” situations instantly.
A Tool for Experts
The UNICAN 2 transforms a complex Ford PATS repair into a predictable, logical procedure. It eliminates the guesswork associated with bad Immo OFF files and provides a permanent hardware fix that survives battery disconnections and diagnostic scans.
For professionals looking to offer reliable repairs on Ford Focus and C-Max models equipped with EDC16C34, this is the definitive solution.
