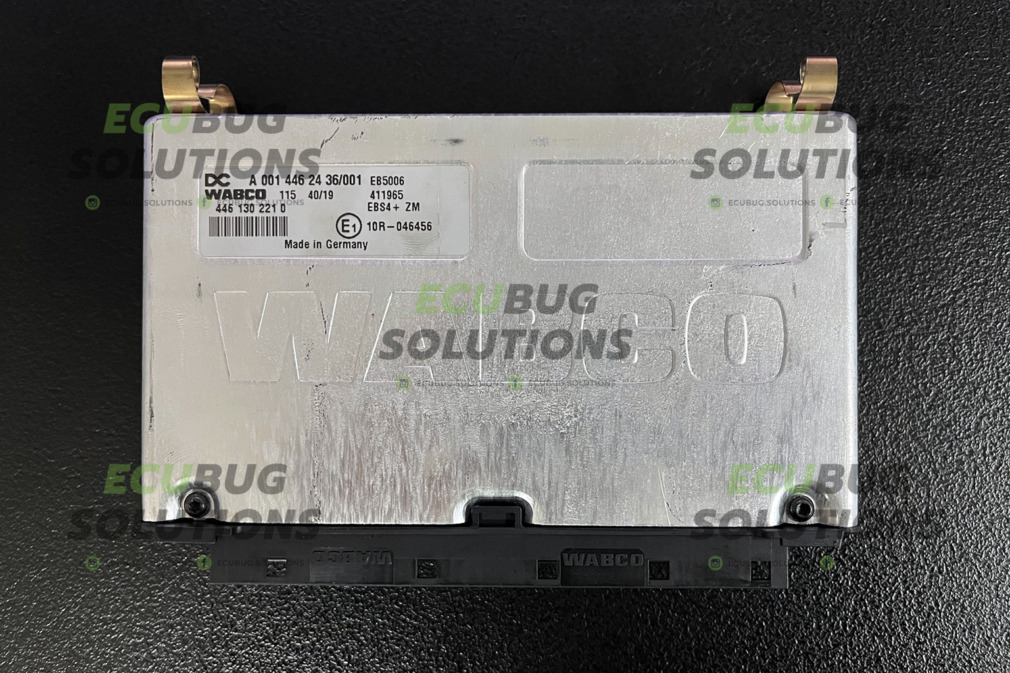

The Electronic Braking System (EBS) is the brain of the braking system in modern trucks, ensuring not only maximum efficiency but also the safety of the crew and cargo. At the heart of this system in popular vehicles like the Mercedes-Benz Actros MP4 or Atego is the EBS4 control unit. Its failure can bring the entire vehicle to a standstill, causing significant financial losses. At the ECUBUG service center, we provide a specialized solution – professional repair or cloning of these critical components.
What is the function of the EBS4 control unit?
The 4th generation EBS (Electronic Braking System) control unit is much more than just an ABS system. It is a complex computer that processes data from dozens of sensors in real-time and controls the following functions:
- ABS (Anti-lock Braking System): Prevents the wheels from locking during heavy braking.
- ASR (Traction Control System): Prevents the drive wheels from spinning during acceleration.
- EBD (Electronic Brakeforce Distribution): Optimally distributes braking force between individual axles and wheels according to the current load.
- Brake Wear Management: Balances the wear of brake pads between axles.
- CAN-Bus Communication: Continuously communicates with other control units in the vehicle (engine, gearbox, tachograph), ensuring the smooth and coordinated operation of systems like the retarder or adaptive cruise control.
A malfunction of this unit means an immediate limitation of functionality and the illumination of warning lights on the dashboard.
Most common failures and symptoms of EBS4 malfunction
Based on our experience at our service center, we have identified several typical symptoms of an EBS4 control unit failure, which often lead to the unnecessary and costly replacement of sensors or modulators while the problem persists in the electronics itself:
- No communication with diagnostics: The unit does not respond to attempts to establish a diagnostic connection.
- Permanent or sporadic fault messages: ABS/EBS errors appear on the display, often for no apparent reason.
- Incorrect data from sensors: Diagnostics report a fault with a wheel speed sensor (ABS sensor) or a wear sensor, even when the sensors and wiring are in perfect condition.
- Problems with pressure modulators: The system reports a fault with one or more pressure modulators, leading to incorrect brake function on a specific axle.
- Complete failure of the electronic part of the brakes: The system operates only in emergency pneumatic mode.
Typical Fault Codes (DTCs)
Although precise diagnosis is always key, some fault codes appear more frequently with EBS4 failures. These include, for example:
04040– Internal fault in the control unit.04501,04506– Communication or power supply error for the trailer modulator.- A series of codes related to an implausible signal from wheel speed sensors (e.g., on the front or rear axle).
- Power supply faults (
undervoltageorovervoltageat the unit’s terminals). - CAN-Bus communication errors.
If these codes appear even after checking the peripherals (wiring, sensors), it is highly probable that the source of the problem is the control unit itself.
Our Solution: Repair or Cloning at ECUBUG
Purchasing a new EBS4 control unit is expensive and often unnecessary. At ECUBUG, we approach each case individually and offer two solutions, depending on the extent of the damage to your unit:

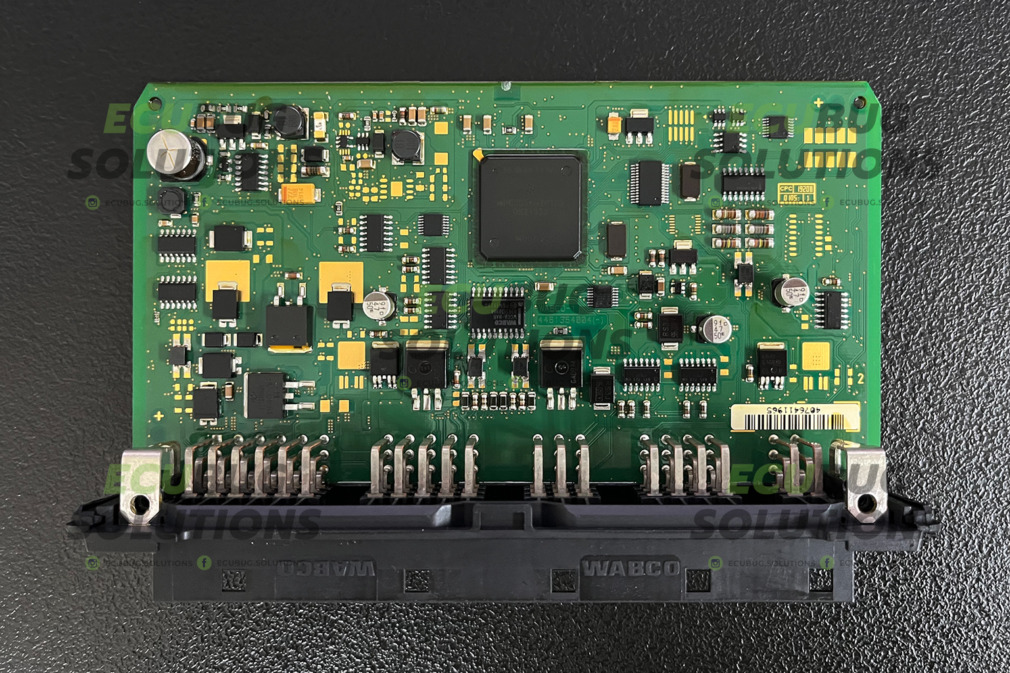

- Professional Repair: This is the preferred and most common solution. We perform diagnostics directly at the circuit board and individual electronic component level. Instead of replacing the entire part, we locate and replace only the damaged components. This way, we can restore the full functionality of your original unit for a fraction of the cost of a new one.

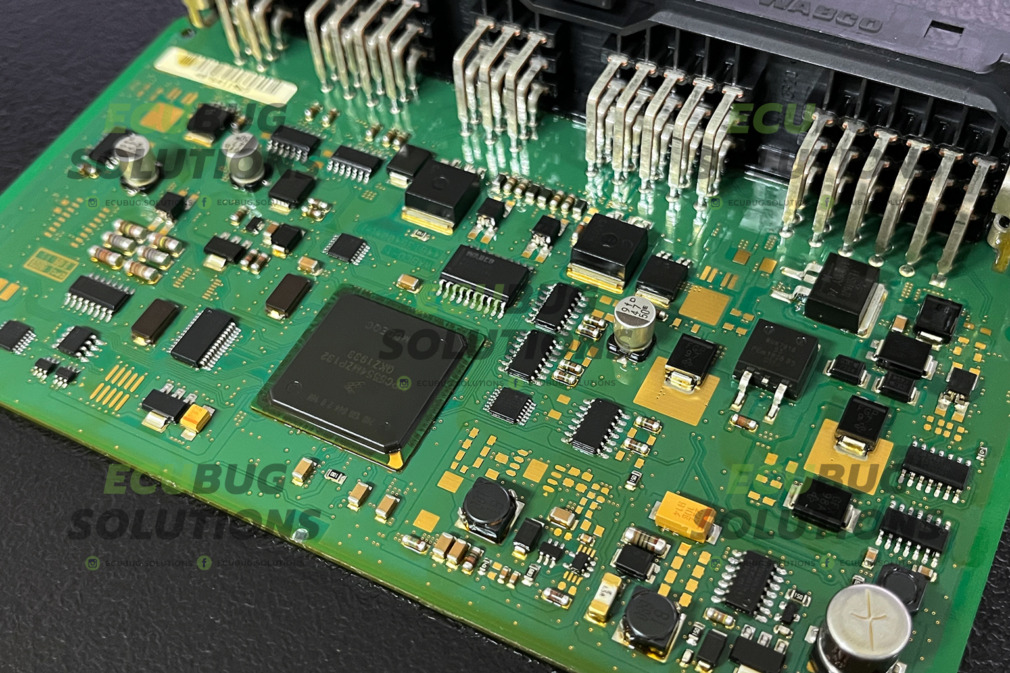

- Control Unit Cloning: If the original unit is damaged beyond repair (e.g., due to water damage or mechanical destruction), cloning is the answer. Thanks to our state-of-the-art equipment, we can read the complete memory from the MPC5554MZP132 processor of your original unit and transfer it 1-to-1 to another, fully functional unit. For more information, please visit our cloning service page: Cloning Service for MB EBS4 Module. The advantage? The cloned unit contains all the original data – VIN, vehicle configuration, mileage, and other specific settings. After installation in the vehicle, it behaves like the original part and requires no further programming. It is a true “Plug & Play” solution.
We provide a 12-month warranty on all our repairs and cloning services.
Why entrust your EBS4 unit to ECUBUG?
We are a specialized electronics service center, not a regular auto repair shop. You don’t need to bring the entire vehicle to us. Simply send us the dismantled control unit, and we will take care of its professional diagnosis and subsequent solution. You will receive a fast, cost-effective, and reliable service that gets your machine back in operation.
By choosing repair instead of buying a new part, you not only save significant financial resources but also make a responsible and ecological decision. Through repair, you contribute to environmental protection by reducing electronic waste and promoting a sustainable approach to the use of valuable resources.
Are you having a problem with the EBS4 control unit in your truck, construction machine, or other equipment? Contact us today to inquire about the solutions for your problem.
