TMPro module 96 - Honda bikes ECU Keihin OKI

Name: TMPro module 96 - Honda bikes ECU Keihin OKI
SKU: TMPRO2M96
Price: 250.00 EUR
Availability: InStock

TMPro module 96 – Honda bikes ECU Keihin OKI

250,00 € excl. VAT

Module for creating immobilizer transponders for Keihin and OKI ECU used in Honda vehicles. Easy and efficient solution.

Important Information:

We sell new and unused goods (unless stated otherwise)!
Before each shipment, the goods are inspected and/or tested for functionality, if possible.
Delivery times may be affected by the courier service.
We also perform repairs on control units and can assist you.

Memory device is serial eeprom 93c46,93c56,93c66,93c86 SMD8 package or Motorola MCU MPC5602.

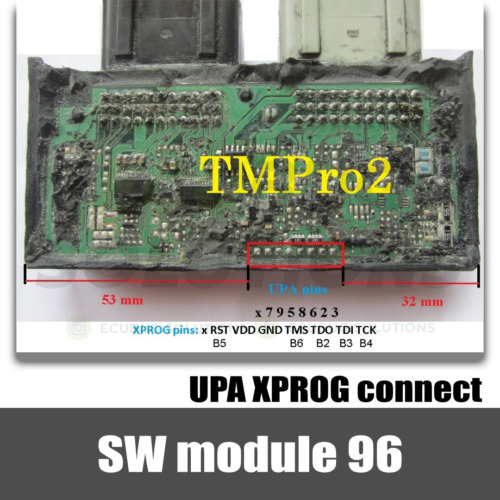

For MPC5602 must read and write DATA FLASH area of MPC5602,you can use UPA-USB-S or XPROG-box, view connection diagram.
For serial eeproms expected file size is 128,256,512 or 2048 bytes.
For MPC5602 expected file size is 65536 bytes.

Use TMPro chip or PCF7936 transponder.

Written transponder is ready programmed to start bike.

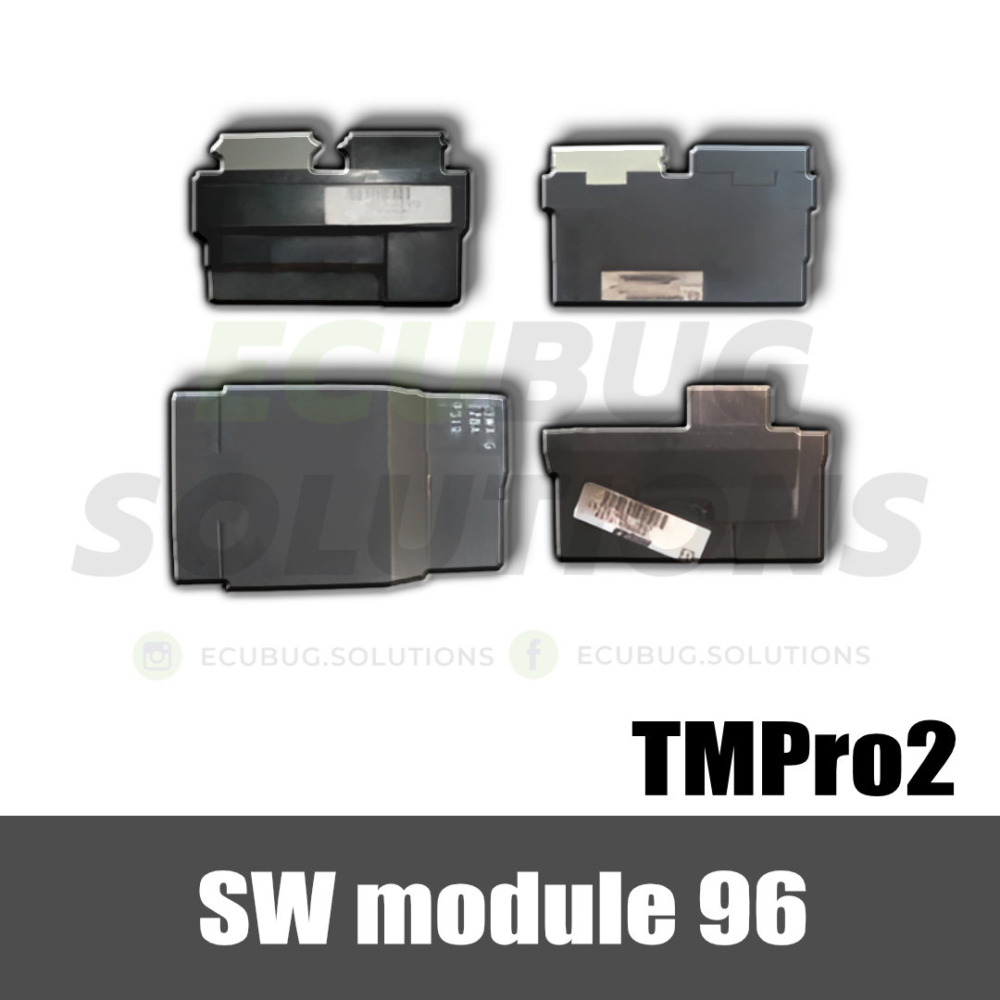

Vehicles equipped with this unit:
Honda: All Honda with HISS system – CBR 600F, CBR 600RR, CBR 900, CBR 1000, CBR 1100F, Gold 2800, NT650V, SH150, SH300, Shadow 750, Silver Wind, Varadero, VT750, VTX1800, X11, Hornet, CB400, CB500X and more…

Important Information: Before purchasing the module, make sure you also have the TMPro2 Transponder Key Programmer. This module cannot function independently!
