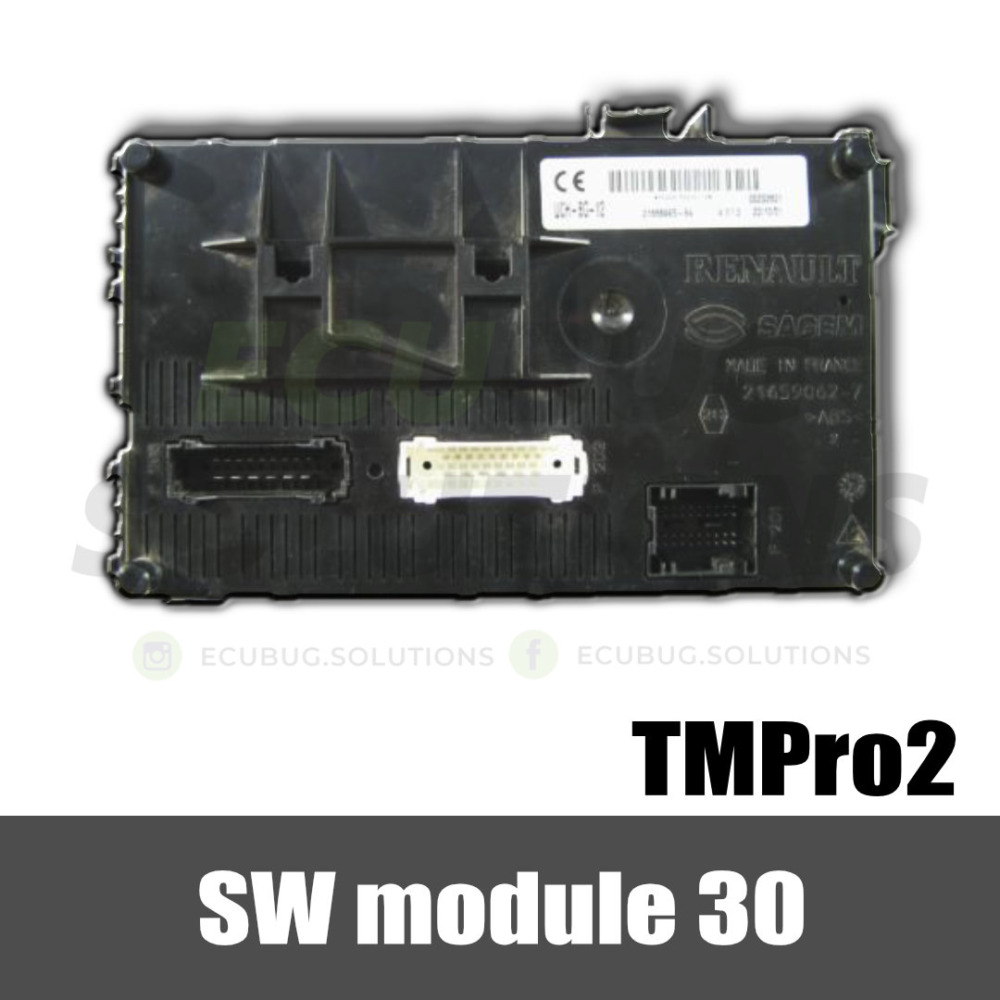

TMPro module 30 – Renault UCH Sagem

250,00 € excl. VAT

Module for creating immobilizer transponders for Sagem UCH modules used in Renault vehicles. Easy and efficient solution.

Important Information:

We sell new and unused goods (unless stated otherwise)!
Before each shipment, the goods are inspected and/or tested for functionality, if possible.
Delivery times may be affected by the courier service.
We also perform repairs on control units and can assist you.

This software can be used in 2 ways:

If you don`t know 12-digit PIN code:

Memory device is serial eeprom 93c66 SMD8 package.
Expected file size is 512 bytes.Module shows PIN code.
Use TMPro chip or PCF7936 transponder. If you use PCF7936 written transponder have to be matched with car using diagnostic device, if you use TMPro chip no need.

If you know 12-digit PIN code:

Start software and manually select module. Insert PCF7936 or Silca T14 – JMA TP12 transponder.
Press PROG button. Software opens box, where you must enter 12-digit PIN code. Verify it and press OK. Match prepared transponder with car using diagnostic device and PIN code.

Vehicles equipped with this unit:
Renault: Clio(2001-2006)
