TMPro module 131 - Gilera Piaggio bikes engine ECU Marelli

Name: TMPro module 131 - Gilera Piaggio bikes engine ECU Marelli
SKU: TMPRO2M131
Price: 200.00 EUR
Availability: InStock

TMPro module 131 – Gilera Piaggio bikes engine ECU Marelli

200,00 € excl. VAT

Module for creating immobilizer transponders for Marelli engine ECU used in Gilera and Piaggio vehicles. Easy and efficient solution.

Important Information:

We sell new and unused goods (unless stated otherwise)!
Before each shipment, the goods are inspected and/or tested for functionality, if possible.
Delivery times may be affected by the courier service.
We also perform repairs on control units and can assist you.

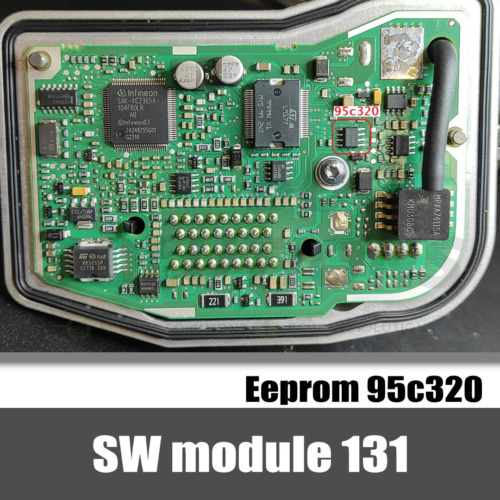

Memory device is ST10F269-T3 – 144 pins TQFP package or serial eeprom 95c320 / 95c640 SMD8 package.
For ST10F269-T3 expected file size is 256/262144/327680 bytes.

For serial eeprom expected file size is 4096 or 8192 bytes.

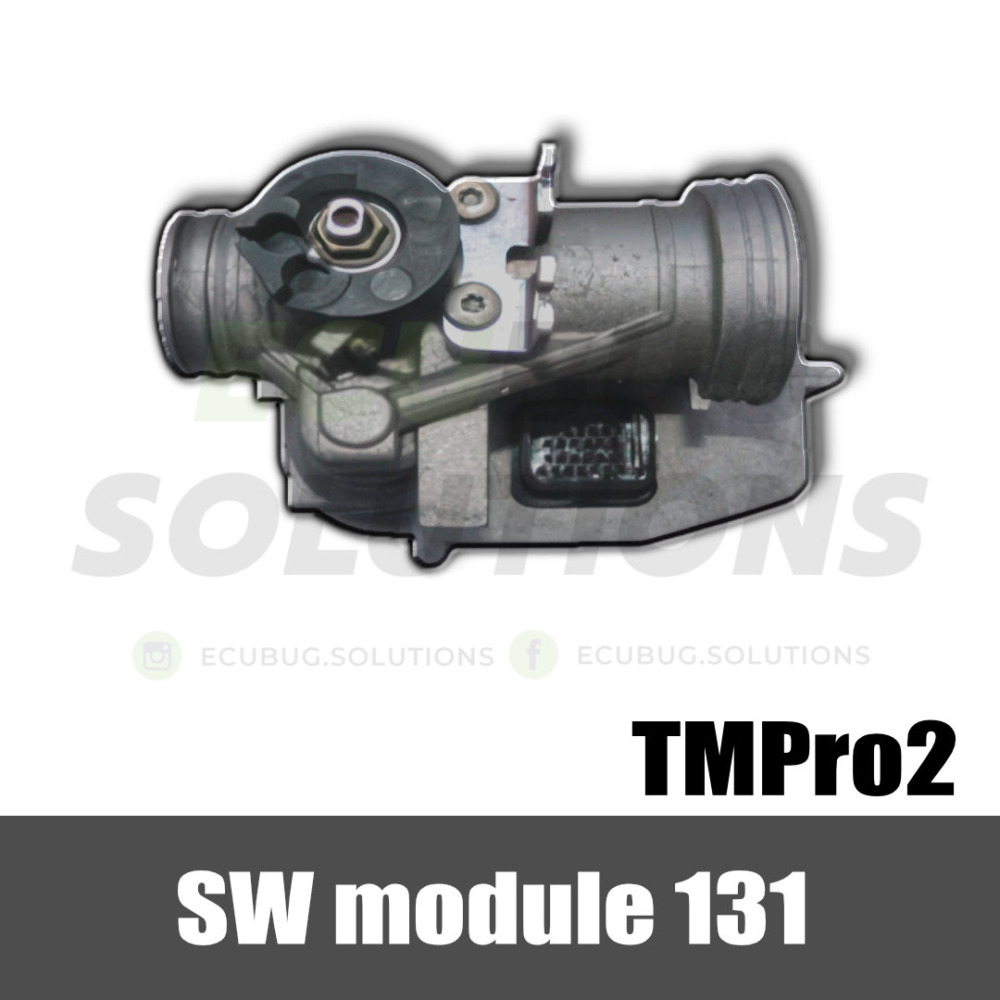

You must open throttle body for to reach and read memory device.

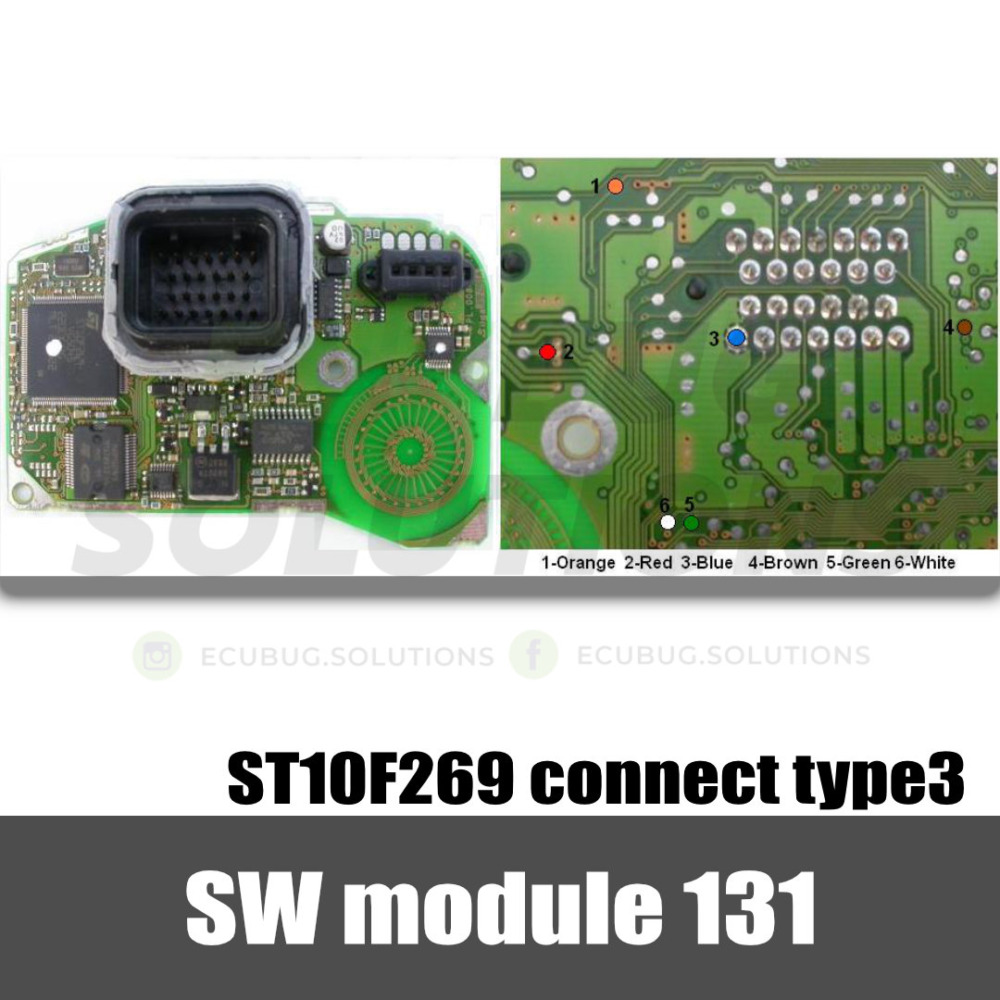

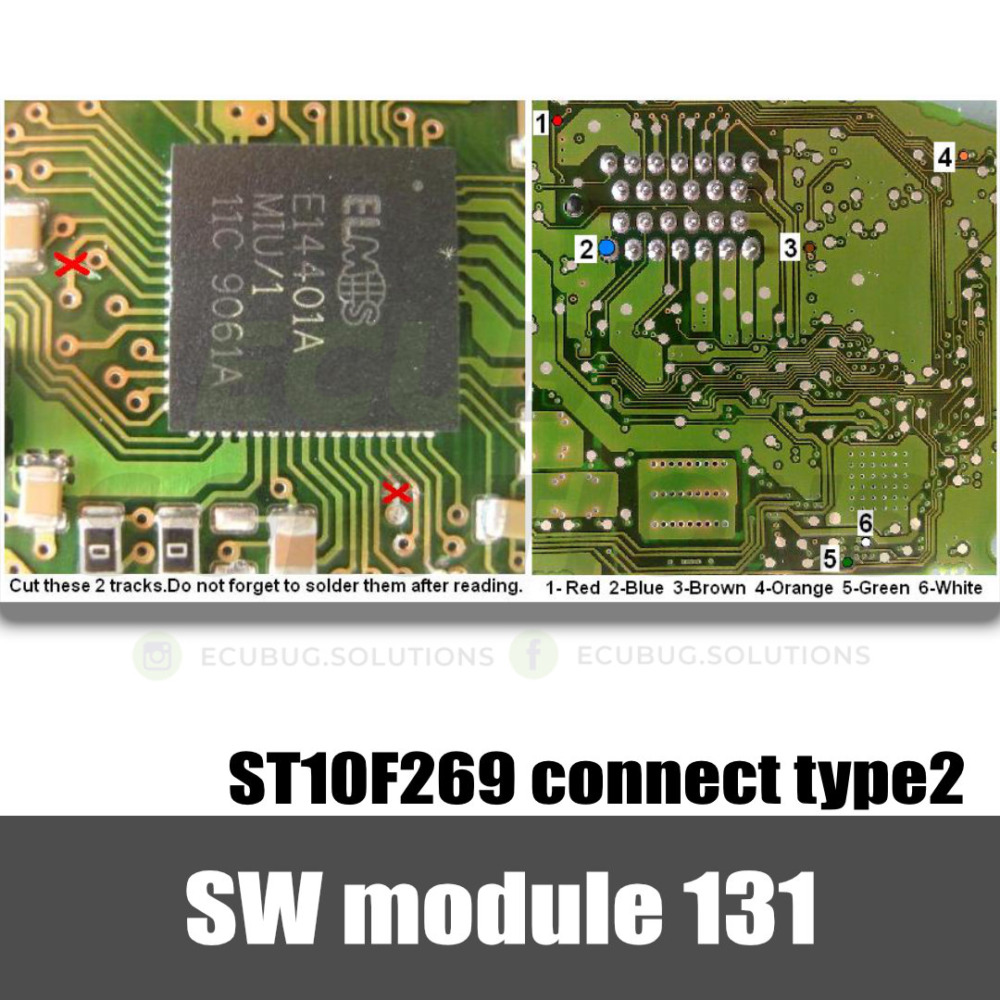

Reading of ST10F269-T3 is thru TMPro interface, view connection diagram.
Use TMPro chip or T5 transponder.

Written transponder is ready programmed to start bike.

Vehicles equipped with this unit:
Piaggio: Beverly, Vespa, MP3
Gilera: Fuoco

NOTE: This software also supports files read with Advanced Scooter Workshop – NEXT (ASW-NEXT).

Important Information: Before purchasing the module, make sure you also have the TMPro2 Transponder Key Programmer. This module cannot function independently!
