TMPro module 128 - Gilera Piaggio bikes engine ECU EFI

Name: TMPro module 128 - Gilera Piaggio bikes engine ECU EFI
SKU: TMPRO2M128
Price: 200.00 EUR
Availability: InStock

TMPro module 128 – Gilera Piaggio bikes engine ECU EFI

200,00 € excl. VAT

Module for creating immobilizer transponders for EFI engine ECU used in Gilera and Piaggio vehicles. Easy and efficient solution.

Important Information:

We sell new and unused goods (unless stated otherwise)!
Before each shipment, the goods are inspected and/or tested for functionality, if possible.
Delivery times may be affected by the courier service.
We also perform repairs on control units and can assist you.

Memory device can be ST72c334 QFP64 package or serial eeprom 25c080 SMD8 package.
To see where keys are stored, check eeprom:

If eeprom is 25c040, keys are in MCU ST72c334
If eeprom is 25c080, keys are in eeprom

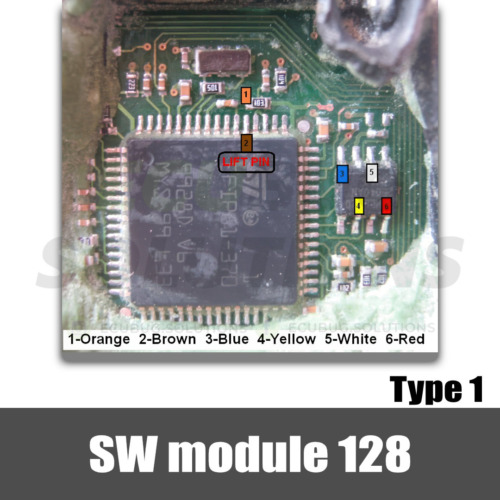

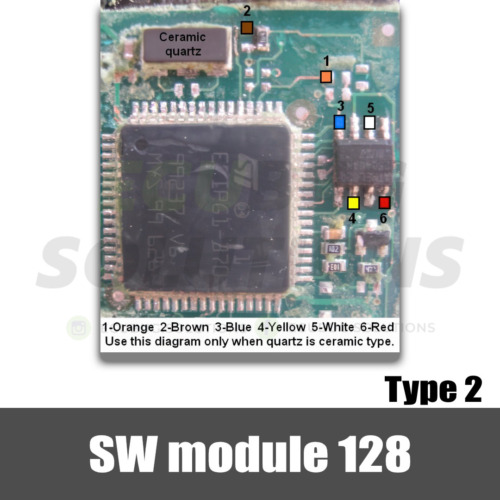

Reading of ST72c334 MCU is thru TMPro interface, view connection diagram.
Expected file size for ST72c334 is 256 bytes, for 95c080 is 1024 bytes.
Use TMPro chip or T5 transponder.

Written transponder is ready programmed to start bike.

Vehicles equipped with this unit:
Gilera: Nexus, Runner
Piaggio: Beverly, Vespa

Important Information: Before purchasing the module, make sure you also have the TMPro2 Transponder Key Programmer. This module cannot function independently!
