TMPro module 109 - BMW bikes engine ECU Bosch

Name: TMPro module 109 - BMW bikes engine ECU Bosch
SKU: TMPRO2M109
Price: 250.00 EUR
Availability: InStock

TMPro module 109 – BMW bikes engine ECU Bosch

250,00 € excl. VAT

Module for creating immobilizer transponders for Bosch engine ECU used in BMW vehicles. Easy and efficient solution.

Important Information:

We sell new and unused goods (unless stated otherwise)!
Before each shipment, the goods are inspected and/or tested for functionality, if possible.
Delivery times may be affected by the courier service.
We also perform repairs on control units and can assist you.

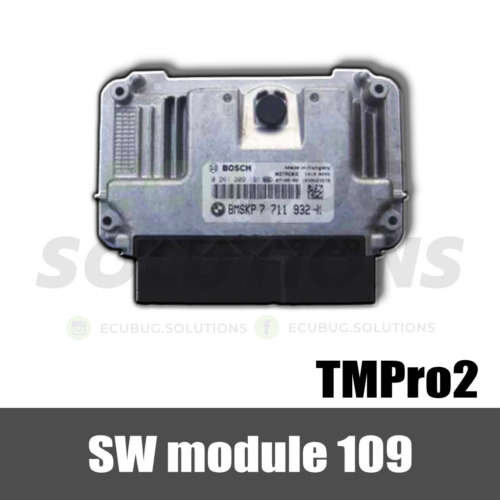

BMW bikes engine ECU are few types – BMSK , BMSX , BMS2K or BMSMP:

For BMSK ECU – keys are stored in engine ECU.
Memory device is flash chip ST M58BW0160 – 80 pin PQFP package.
Expected file size is 2097152 bytes.

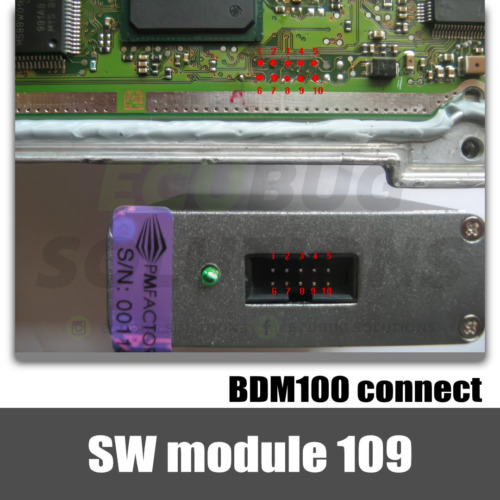

Reading is thru BDM100 interface or with flash programmer.

For BMSX or BMS2K or BMSMP ECU – to find out where keys are stored you must check unit on ignition barrel.

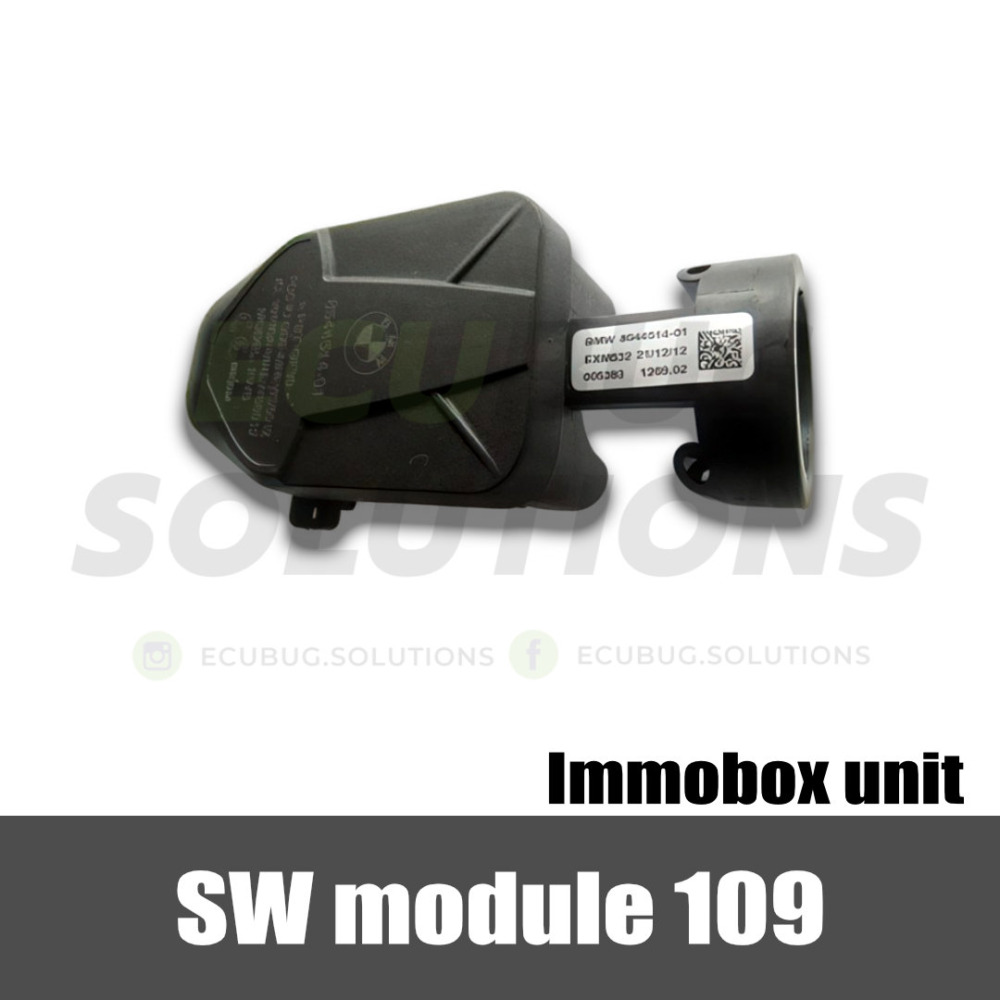

– If there is IMMOBOX UNIT – keys are stored in this unit,not in engine ECU. To make key you need software 191.

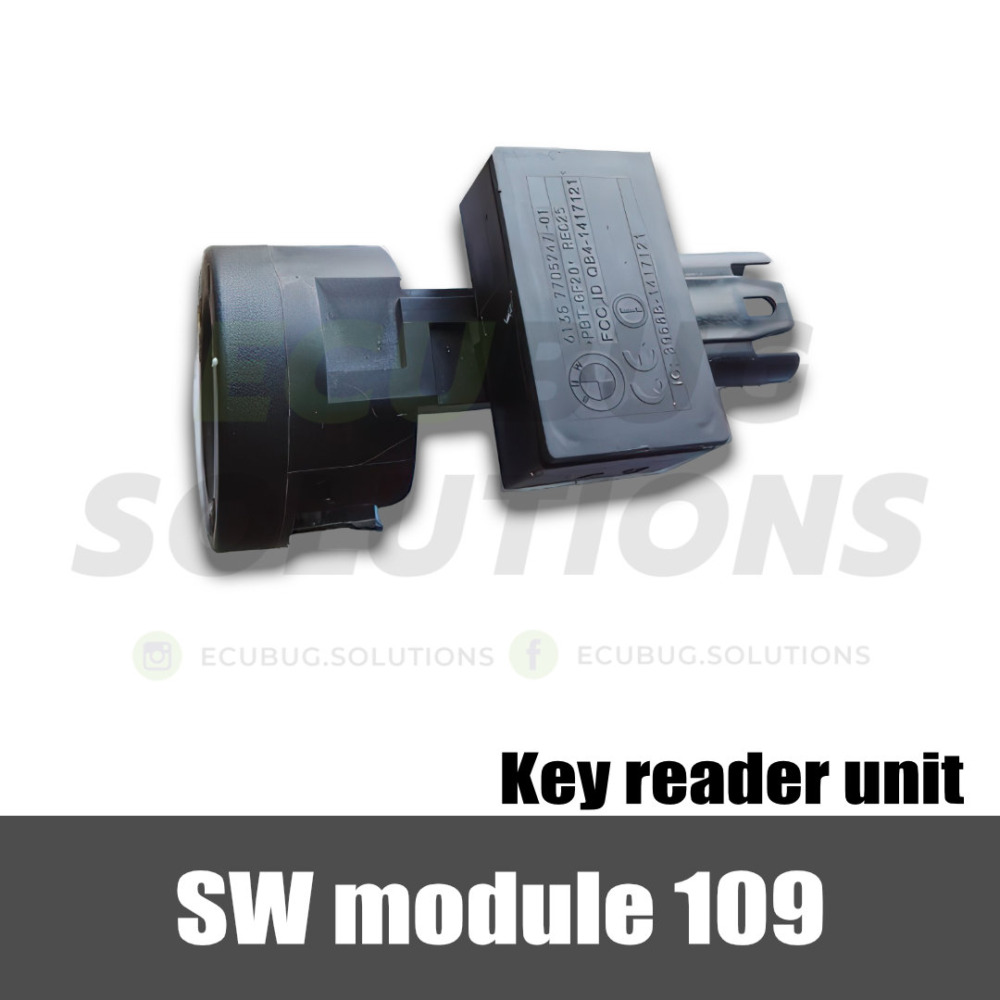

– If there is KEY READER UNIT – keys are stored in engine ECU.

Memory device is TRICORE MCU eeprom area.
Expected file size is 65536 or 196608 or 262144 bytes.
Use TMPro chip or PCF7936 or Silca T14 – JMA TP12 transponder.

Written transponder is ready programmed to start bike.

Vehicles equipped with this unit:
BMW: F800, R1200GS, K1600GT

Important Information: Before purchasing the module, make sure you also have the TMPro2 Transponder Key Programmer. This module cannot function independently!
