350,00 € excl. VAT

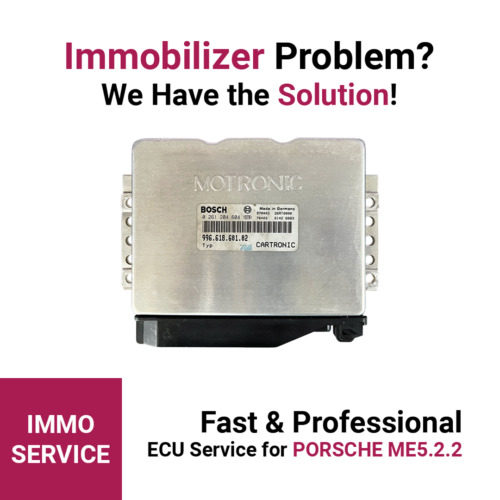

Immobilizer data extraction and emulator setup service for Bosch ME5.2.2 ECUs in Porsche Boxster and 996 Carrera models. Choose between sending your ECU or receiving a pre-programmed emulator based on your EEPROM dump.
This service allows you to bypass the immobilizer system (M534 / M535) in Bosch ME5.2.2 engine control units found in Porsche Boxster and 996 Carrera vehicles. We prepare a plug-and-play emulator that simulates the required alarm system signal and unlocks the ECU.
Compatible ECU part numbers:
0 261 204 604
0 261 204 605
0 261 204 010
To use this emulator, the immobilizer synchronization data from the original ALARM SYSTEM M534 / M535 must be transferred from the ECU to the emulator. The emulator contains an I2C 24C02 eeprom memory, into which the synchronization bytes are directly written.
There is no need to modify the ECU’s flash or eeprom files – the ECU remains in its original, untouched state.
You have two options for this service:
Send your ECU to us – we extract the necessary data, install the emulator inside the ECU, and return it fully prepared and ready for use.
Send only the EEPROM dump – we analyze the file and ship you a pre-programmed emulator configured for your ECU.
Both options are priced the same. Choosing the second option saves on shipping costs and is ideal for international customers who want to avoid the risks of sending the ECU by courier.
✅ No internal modifications to the ECU required
✅ Emulator is programmed using real immobilizer sync data
✅ Fully bench-tested using an actual ME5.2.2 unit
What we need from you:
Either your complete Bosch ME5.2.2 ECU shipped to us for processing or the EEPROM data file (24C04 dump) extracted from your ECU
Confirmation of the ECU part number and the corresponding vehicle model (Boxster or 996 Carrera)
What you receive:
A pre-programmed immobilizer emulator configured using your ECU’s synchronization data
Depending on the chosen option:
• If you sent your ECU – you receive it back with the emulator installed and ready to use
• If you sent the EEPROM file – you receive a standalone emulator prepared for direct installation
Fully tested and verified for plug-and-play operation
